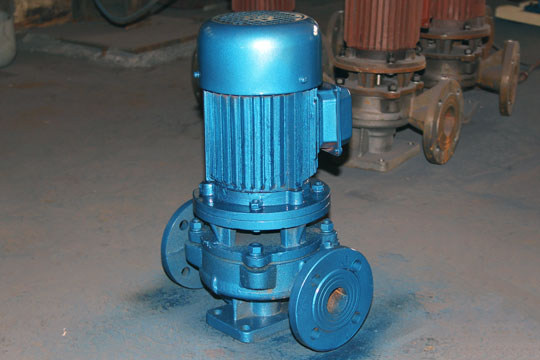

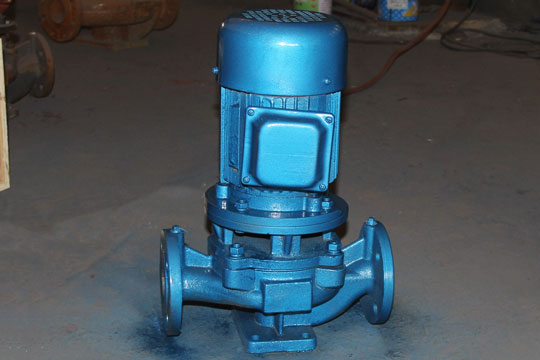

SLG Vertical Pipleline Pump

SLG vertical pipeline pump detail:

Flow range 1.1~1450m3/h;    Head range 3~150m;    Inlet diameter 15~500mm;   Temperature scope <120°C

SLG vertical pipeline pump overview:

SLG single-stage single-suction vertical centrifugal pumps are our company adopts the virtue of IS centrifugal pumps’ performance parameters and vertical pump structure , strict accordance with international standard ISO2858 and the newest national standards designs successfully the efficient energy-saving products. They are the new vertical centrifugal pumps to replace IS horizontal pump, DL pump and other conventional products.
According to the different flow medium and temperature, design and manufacture SLRG hot pump, SLHG chemical pump, SLYG oil pump and SLHBG series products of same performance parameters.

SLG vertical pipeline pump characteristics:

1. Compact structure, small volume , beautiful appearance. Their vertical structure’ low gravity center and gravity center overlapping at the pump foot center, enhancing the stability of running and life.
2. Easy installation. Same diameter of inlet and outlet and in the same central line, making them can be installed directly at any part of the pipeline like valve. Motor can be used outdoors with rain covers. Pump with mounting base , increasing the stability of installation.
3. Smooth operation, low noise , high components concentricity. Motor adopts low noise bearing, and have non-stop refueling device; pump impeller have excellent static and dynamic balance, no vibration running, all of these improve the using environment.
4. No leakage. Shaft sealing adopts corrosion-resistant alloy mechanical seal, solving the serious leakage problem of centrifugal pump packing seal, extending service life, ensuring the operation site clean and tidy.
5. Convenient maintenance. Without removing the pipe, just remove the pump cover nut and take out the motor and rotating components for repair and maintenance.
6. According to the site condition , the pump can be vertical ,multi-mode installed. Based on the flow , lift requirements , using parallel, series connection method to increase the required flow and lift.

SLG vertical pipeline pump using condition:

1. The maximum working pressure of pump system ≤1.6MPa, pump inlet pressure + pump lift ≤1.6MPa , so when ordering please indicate the system working pressure. When the inlet pressure is greater than 0.4 MPa or the system working pressure is greater than 1.6MPa, please put forward when ordering , so that when manufacturing we can use copper materials in the pump flow portion and connection portion.
2. Applicable medium : water type non-corrosive liquids, solid insoluble matter volume content of the medium is no more than 0.01% of the unit volume , particle size is no more than 0.2mm, if the medium has fine particles , please indicate when ordering .
3. Ambient temperature doesn’t exceed 40°C,relative humidity is no more than 95%.

SLG vertical pipeline pump main purpose:

 SLG vertical channel pump is for conveying water and other liquids whose physical properties similar to water. Using the medium below 80°C. They are applicable for industrial and city drainage, high-rise building pressurized water supply, garden sprinkler, fire booster, long-distance water transfer, heating, bathroom warm and cold water cycle pressure boost and equipment supporting, etc.
