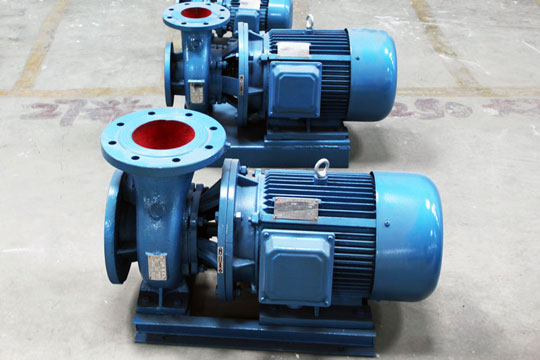

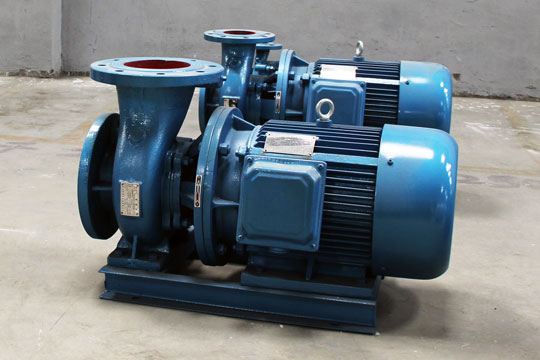

SLW horizontal pipeline pump

SLW horizontal pipeline pump Details

SLW horizontal pipeline pump detail:

Flow range:1.1m3/h~1450m3/h;  Head range:3~150m;   Inlet diameter:15~500mm;   Temperature range: not more than 120 degree

SLW horizontal pipeline pump overview:

SLG type single grade single and vertical centrifugal pump is our company use IS type centrifugal pump performance parameters of the pump and the strong points of vertical structure, in strict accordance with the international standard ISO2858 and the latest national standards of successful design efficient products, IS instead of type IS horizontal pump, DL type pump the conventional product novel vertical centrifugal pump.

SLW horizontal pipeline pump characteristics:
1. Pump compact structure, small volume, beautiful appearance. The vertical structure low centre of gravity and center of gravity coincidence in the center of pump foot, enhance the pump the operation stability and life.
2. Convenient installation. In and out of the same diameter and in the same center line, like valve can be installed in any part of the pipeline directly. Motor with a rain cover can be used in outdoor. Pump has installed points to pump installation stability.
3. Smooth operation, low noise, component maze &sealed ring. The motor has bass bearing, and equipped with non-stop refueling device, the pump impeller with very good dynamic balance, operation no vibration, improve service environment.
4. No leakage. Shaft seals use hard alloy corrosion resistance of mechanical seal, save the serious problem of centrifugal pump packing seal leakage and prolong the life, to ensure that the operation clean and tidy.
5. Convenient maintenance. Don't need sent some pipeline, as long as a check on the cover of the pump nut, remove the motor and transmission components machine maintenance can be carried out.
6. But according to the conditions of use, pump can be vertical, many installation, depending on traffic head requirements, using the parallel and serial method, increase the flow of head needed.

SLW horizontal pipeline pump working conditions:

1. Pump pressure of system work less than 1.6MPa, namely the pressure of suction inlet plus the head of pump less than 1.6MPa, when ordering, please indicate the system work pressure. when the import pressure is greater than 0.4MPa, or pump system work pressure is greater than 1.6MPa, shall be told us when you place the order, so that in the manufacturing, pump flow part and connections have made of copper materials.
2. Applicable medium: pure water without Corrosive liquid, Medium solid not content, volume not more than the unit volume 0.01%, particle size<0.2mm,if there is a small grain medium, please tell us in ordering.
3. The ambient temperature no more than 40 degrees, relative humidity not more than 95%.

SLW horizontal pipeline pump Application Field

栏目ID=6的表不存在(操作类型=0)

SLW horizontal pipeline pump Model

Model Flow Lift Power
APKSLW20-110 2.5 15 0.37
APKSLW20-125 2.5 20 0.75
APKSLW20-160 2.5 32 1.1
APKSLW25-110 4 15 0.75
APKSLW25-125 4 20 0.75
APKSLW25-125A 3.6 16 0.75
APKSLW25-160 4 32 1.5
APKSLW25-160A 3.7 20 1.1
APKSLW32-100 4.5 12.5 0.75
APKSLW32-125 5 20 0.75
APKSLW32-125A 4.5 16 0.75
APKSLW32-160 5 32 1.5
APKSLW32-160A 4.5 28 1.1
APKSLW32-160(I) 6.3 32 2.2
APKSLW32-200 5 50 3
APKSLW32-200A 4.5 44 2.2
APKSLW32-200B 3.5 38 1.5
APKSLW32-200(I) 6.3 50 4
APKSLW40-100 6.3 12.5 0.75
APKSLW40-100A 5.6 10 0.75
APKSLW40-125 6.3 20 1.1
APKSLW40-125A 5.6 16 0.75
APKSLW40-160 6.3 32 2.2
APKSLW40-160A 5.9 28 1.5
APKSLW40-160B 5.5 24 1.1
