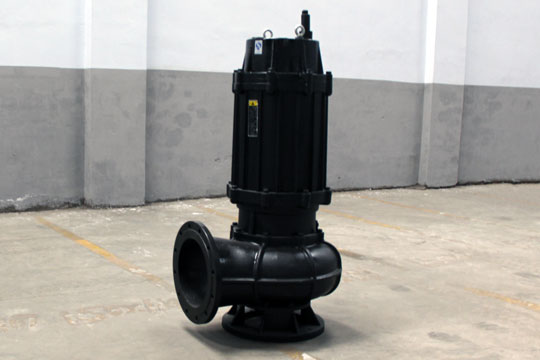

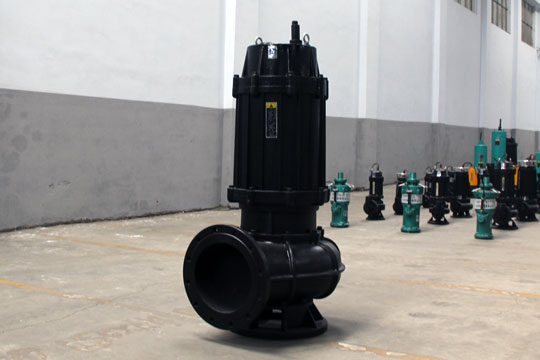

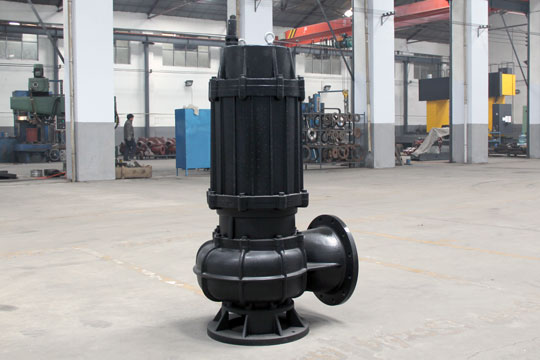

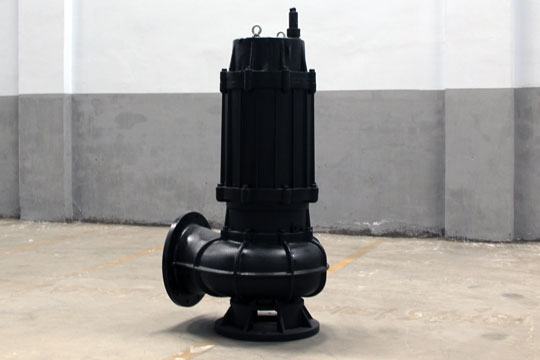

WQG mine sewage pump

WQG mine sewage pump detail:

Flow range:100-1300m3/h; Head range:7-45m;

WQG mine sewage pump overview:

WQ sewage submersible pump is non-clogging sewage pump developed on the basis of the introduction of foreign advanced technology, now is the most advanced internal sewage systems. Features: notable energy saving effect, non-clogging , anti-winding, strong particles passing ability, automatic installation, automatic prosecution, etc.

WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity; The motor part adopts mechanical seals of hard corrosion double end face ceramic, which have very good effect of seepage prevention, its protection level is IP58 and designed insulation class is grade E (75 K), motor running more safe, reliable, and long service life, convenient installation.

WQG mine sewage pump application:

(1). Enterprise wastewater discharge
(2). Drainage system of city sewage treatment plant
(3). Drainage station of subway, underground chamber, air defense system
(4). Sewage drainage of hospitals ,hotels, high-rise buildings
(5). Sewage drainage station of residential district
(6). Thin mud drainage of municipal works and construction site
(7). Water supply equipment of water plant
(8). Sewage drainage of farm and agriculture irrigation of village
(9). Mining exploration and water treatment equipment supporting
(10). Replacing the shoulder carries to deliver river mud

WQG mine sewage pump working condition:

(1). Based on the impeller center, the underwater depth that the pump was placed shall not exceed 5 m
(2). Temperature of the transport medium not more than 40 centidegree
(3). Transported medium's PH value for 4 ~ 10, and pump shall not carry high corrosive liquid
(4). The transfer medium's solid volume ratio under 20%
(5). The movement viscosity of transport medium for 7×10-7~23×10-6m²/s
(6). The biggest density of transfer medium for 1200 kg/m ³
(7). WQ submersible pump, motor must be dived into the underwater to operate
