WQK Cutting sewage pump

Cutter sewage pump parameters:

(cast iron or stainless steel 304/316/316L/duplex stainless/ss904L and 380v/440v/480v/600v/660v. )

Outlet diameter	Model	Discharge flow	Head	Power
mm	WQ type	m3/h	m	kw	hp
50	50WQ10-15-1.5	50	10	1.5	2
65	65WQ25-10-2.2	25	10	2.2	3
65	65WQ25-20-3	25	20	3	4
80	80WQ50-13-4	50	13	4	5
100	100WQ100-15-7.5	100	15	7.5	10
150	150WQ145-9-7.5	145	9	7.5	10
100	100WQ100-25-11	100	25	11	15
150	150WQ130-15-11	130	15	11	15
200	200WQ300-7-11	300	7	11	15
100	100WQ100-30-15	100	30	15	20
150	150WQ100-30-15	100	30	15	20
200	200WQ220-12-15	220	12	15	20
100	100WQ100-35-18.5	100	35	18.5	25
150	150WQ180-20-18.5	180	20	18.5	25
200	200WQ250-15-18.5	250	15	18.5	25
250	250WQ400-7-18.5	400	7	18.5	25
100	100WQ100-40-22	100	40	22	30
150	150WQ180-25-22	180	25	22	30
200	200WQ300-15-22	300	15	22	30
250	250WQ450-7-22	450	7	22	30
150	150WQ160-45-30	160	45	30	40
200	200WQ400-13-30	400	13	30	40
250	250WQ600-9-30	600	9	30	40
300	300WQ850-7-30	850	7	30	40
150	150WQ180-45-45	180	45	45	60
200	200WQ400-25-45	400	25	45	60
250	250WQ600-20-55	600	220	55	75
350	350WQ1300-12-75	1300	12	75	100

Cutter sewage pump details:

1. Flow: 5m3/h-1300m3/h
2. Head: 5m-45m
3. Voltage: 380v/420v/440v or as per request
4. Speed: 1450rpm, 2900rpm, 3450rpm

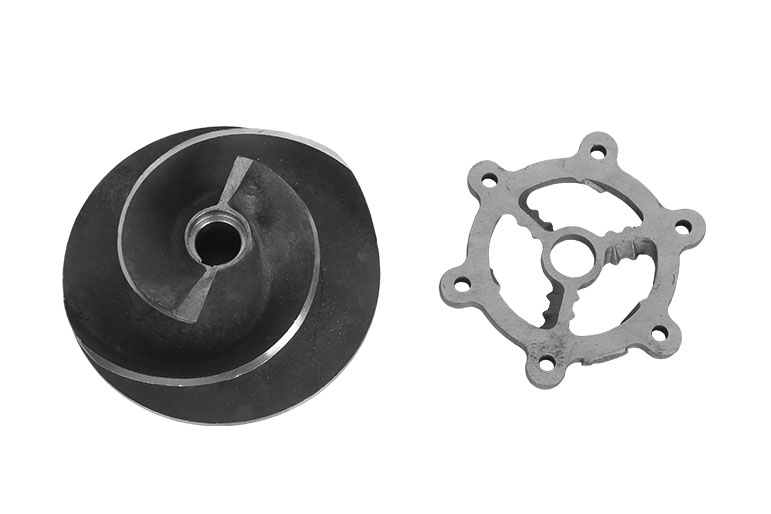

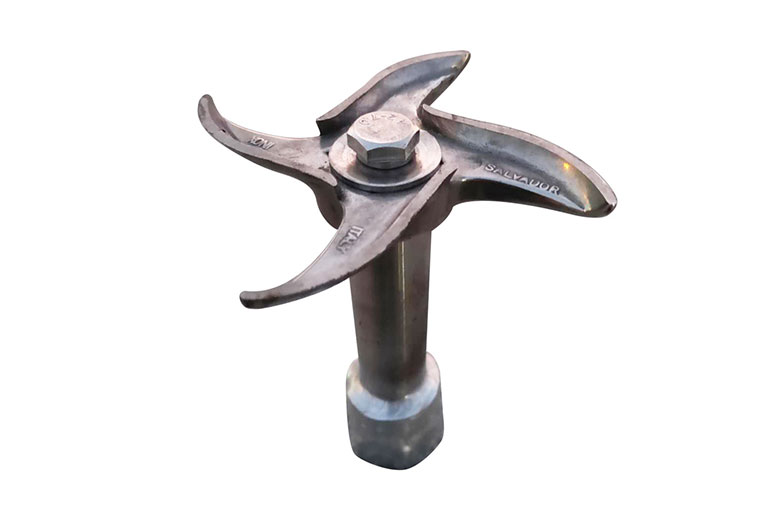

5. Impeller: grinder impeller type, knife impeller type
